Description

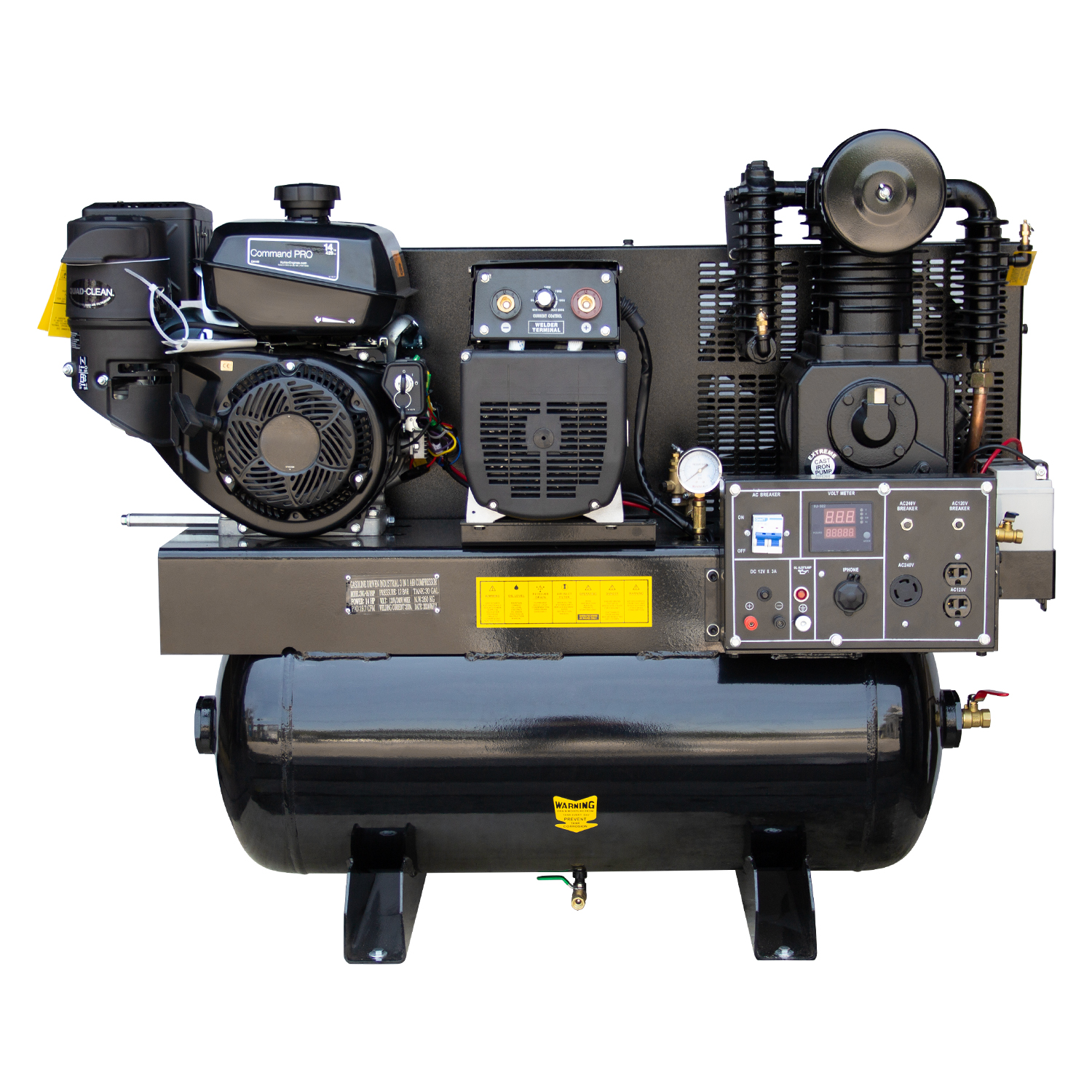

15HP 19CFM Two Stage Air Compressor / Generator / Welder 30 Gallon 180PSI
Need a complete power solution for job sites? This 3-in-1 unit combines an air compressor, generator, and welder into one powerful machine, delivering maximum efficiency and flexibility for industrial and construction applications.
💡 3-in-1 design — air compressor + generator + welder in one machine.
Not sure if this all-in-one unit fits your job needs? Ask below and get instant answers and the best pricing options.
🤖 Ask About This 3-in-1 Compressor System
Optimize Best Price & Bulk Deal
Can it run everything together?
Is 19 CFM enough?
Why two-stage compressor?
Can it run continuously?
3-in-1 vs separate machines?
Product Overview

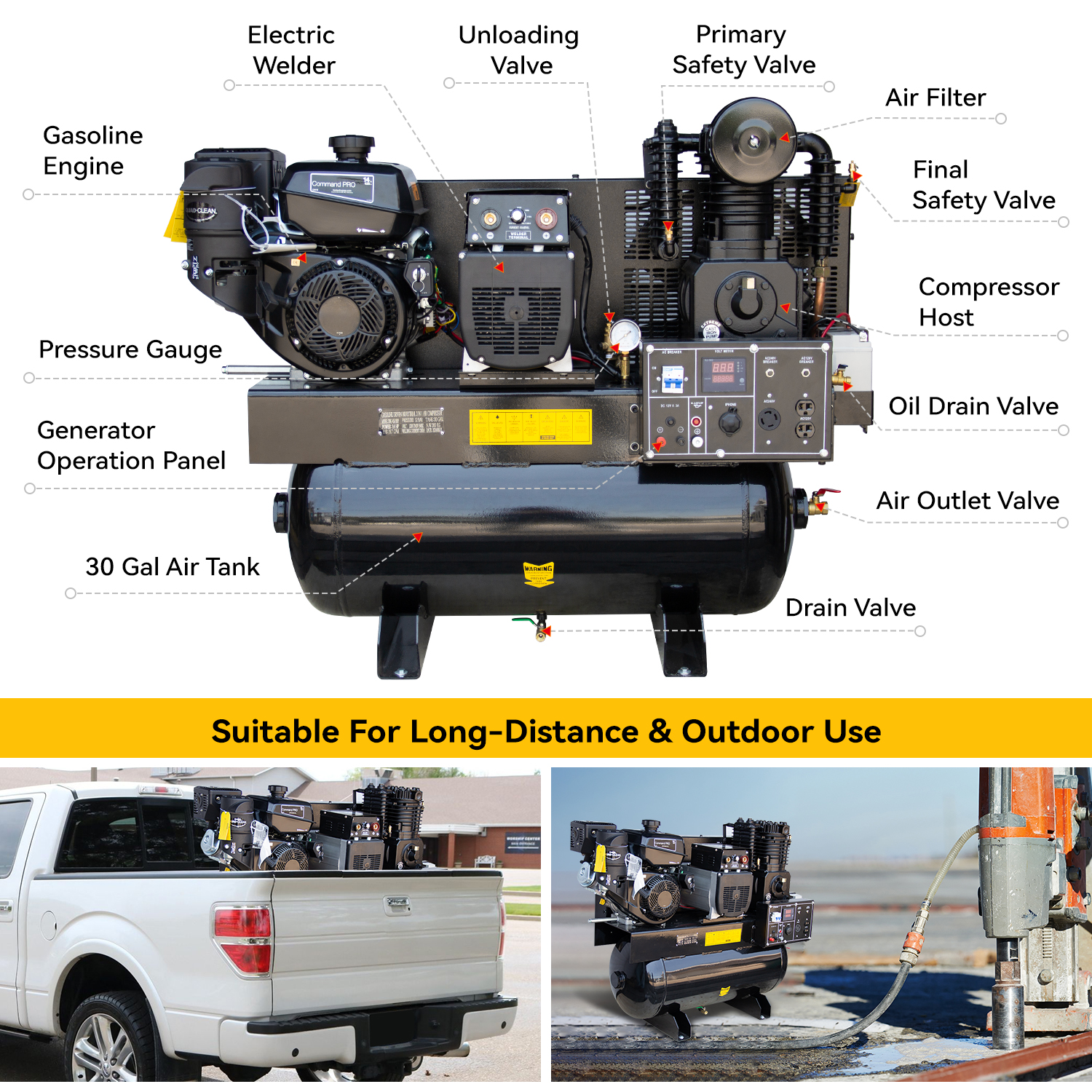

This 15HP 3-in-1 system integrates a two-stage air compressor, high-output generator, and welding power supply into a single compact unit. Designed for heavy-duty job sites, it reduces equipment footprint while maximizing efficiency and versatility.
Key Features
- 3-in-1 system: air compressor + generator + welder
- 15HP KOHLER engine for powerful and reliable performance
- 19 CFM airflow with 180 PSI maximum pressure
- Two-stage piston compressor for high efficiency and durability
- 30-gallon ASME certified air tank
- 6000W max generator output (5400W rated)
- Welding power output with stable current supply
- Full pressure lubrication system for longer lifespan
- Electric key start + recoil backup
- Heavy-duty frame for industrial environments
Applications
Ideal for construction sites, mobile repair operations, pipeline work, farms, remote industrial projects, and any environment requiring compressed air, power generation, and welding capabilities in one machine.

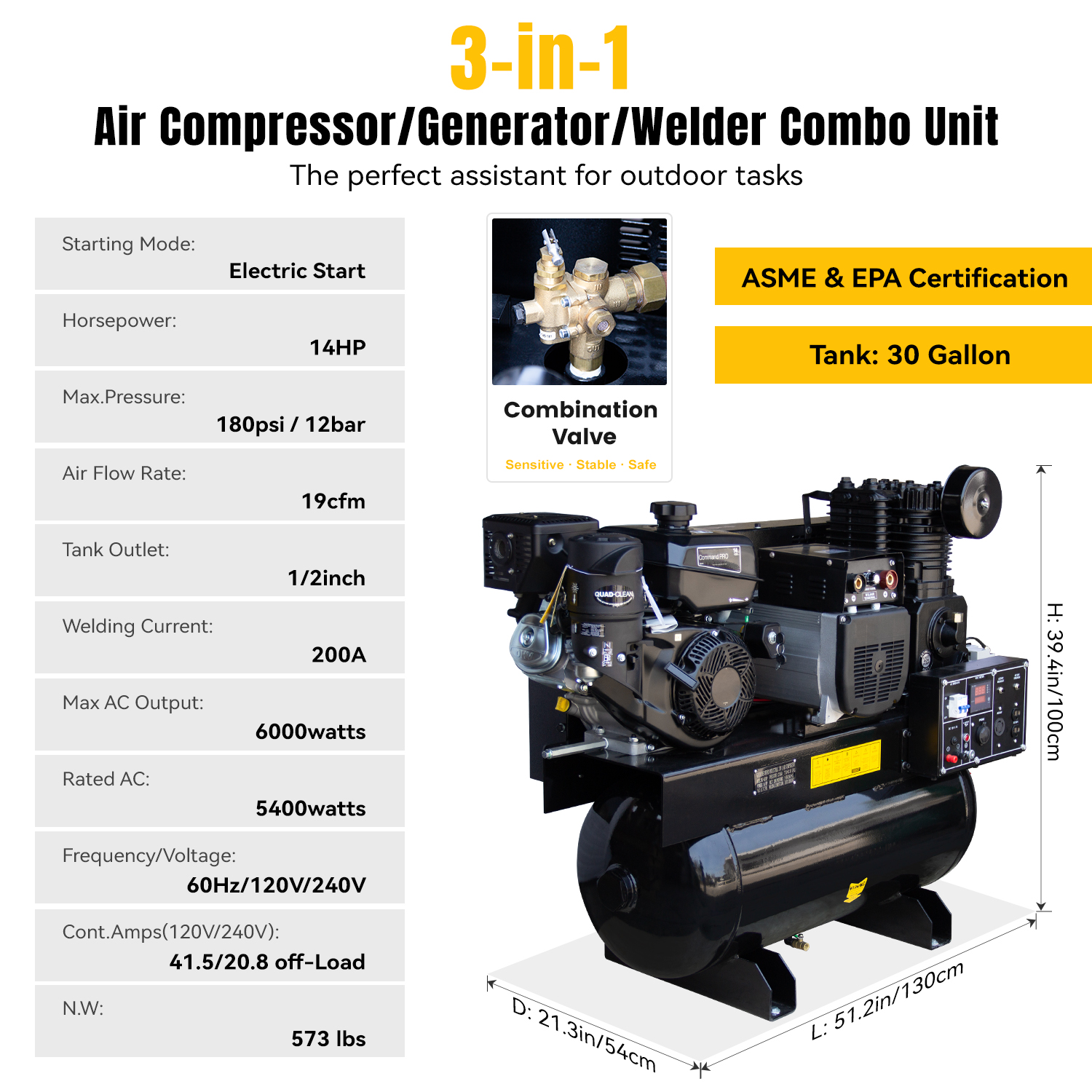

Technical Specifications
- Engine Power: 15HP (KOHLER CH440)
- Airflow: 19 CFM
- Max Pressure: 180 PSI
- Pump Type: Two-Stage, Belt Drive
- Pump Material: Solid Cast Iron
- Lubrication: Full Pressure Oil Lubrication
- Tank Capacity: 30 Gallon (ASME Certified)
- Tank Outlet: 1/2 inch
- Generator Max Output: 6000W
- Generator Rated Output: 5400W
- Alternator Output: 3600W @90PSI / 3000W @175PSI
- Voltage: 120V / 240V
- Frequency: 60Hz
- Max Amps (120V/240V): 41.5 / 20.8
- Starting System: 120V/240V Key Start + Recoil
⚠️ Operate in well-ventilated outdoor areas. Ensure proper maintenance for engine, compressor, and electrical systems.
This all-in-one unit reduces equipment cost, saves space, and improves job site efficiency. Contact us to get the best price and customized solutions for your project.
