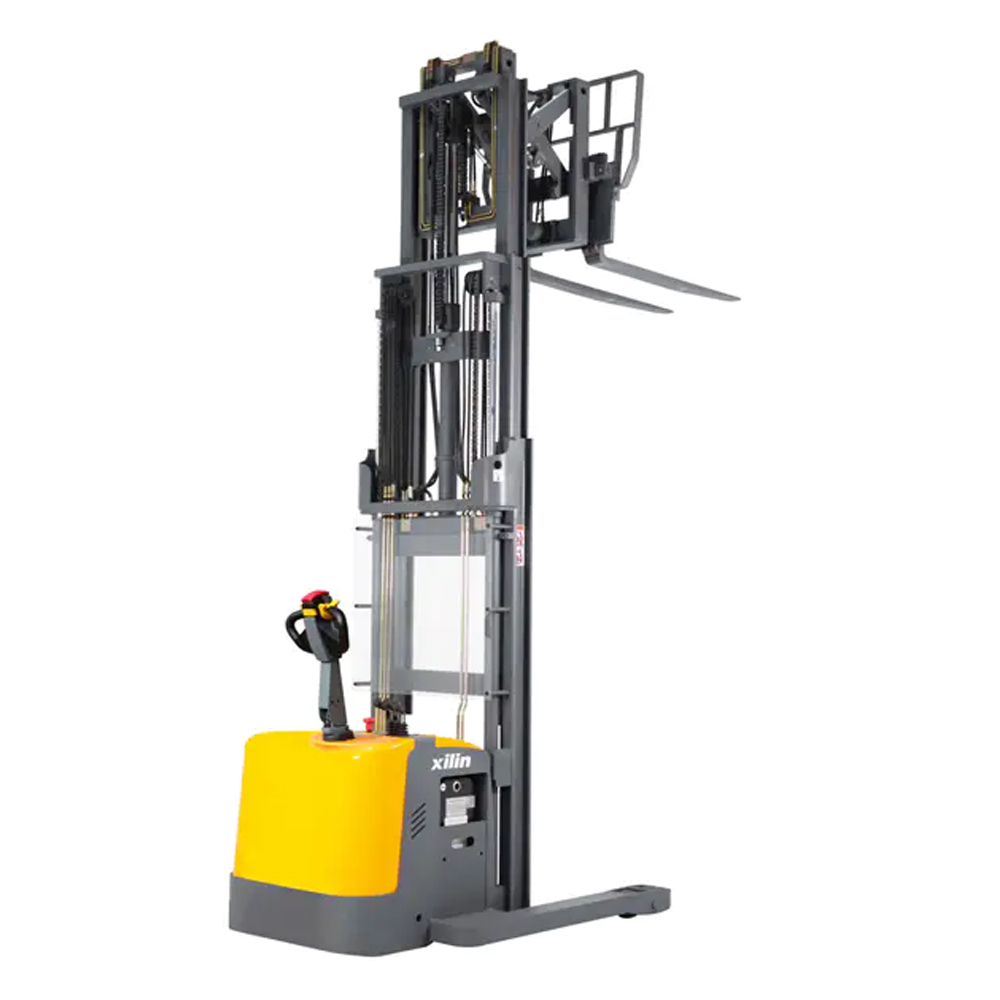

Description

📦 Key Features
Load Capacities:
CQDH15A-III: 3,300 lbs (1,500 kg)
CQDH20A-III: 4,400 lbs (2,000 kg)
CQDH20A-III Double Scissor: 2,200 lbs (1,000 kg)

Lift Heights:
177–216 inches (max mast height up to 257 inches)

Design & Build:
Compact walkie design for narrow aisles
Modular mast and frame for easy maintenance
Sealed motor construction (water- and dust-proof)
Polyurethane tires
Standing operator type

Control & Display:
Multi-function LCD (BDI, hour meter, fault codes)
German Frei handle for precise control
Optional EPS (Electric Power Steering)

🔋 Power & Performance
Drive Motor: 2.0–3.0 HP AC
Lift Motor: 6.0 HP
Battery: 24V / 320–400Ah (Lithium or Lead-Acid)
Travel Speed: 3.8 mph (loaded/unloaded)
Lift Speed: 0.30 / 0.39 ft/s
Turning Radius: 61.4–72.6 inches

🛡️ Safety & Efficiency
Explosion-proof hydraulic valves
Auto speed reduction above 70″ lift
Height limiting sensor
Low voltage protection
Electromagnetic service brake
≤ 75 dB(A) noise level

🛠️ Applications
High-reach stacking in narrow aisles
Warehousing and logistics
Long-term, low-maintenance operations
