Description

📦 Product Summary

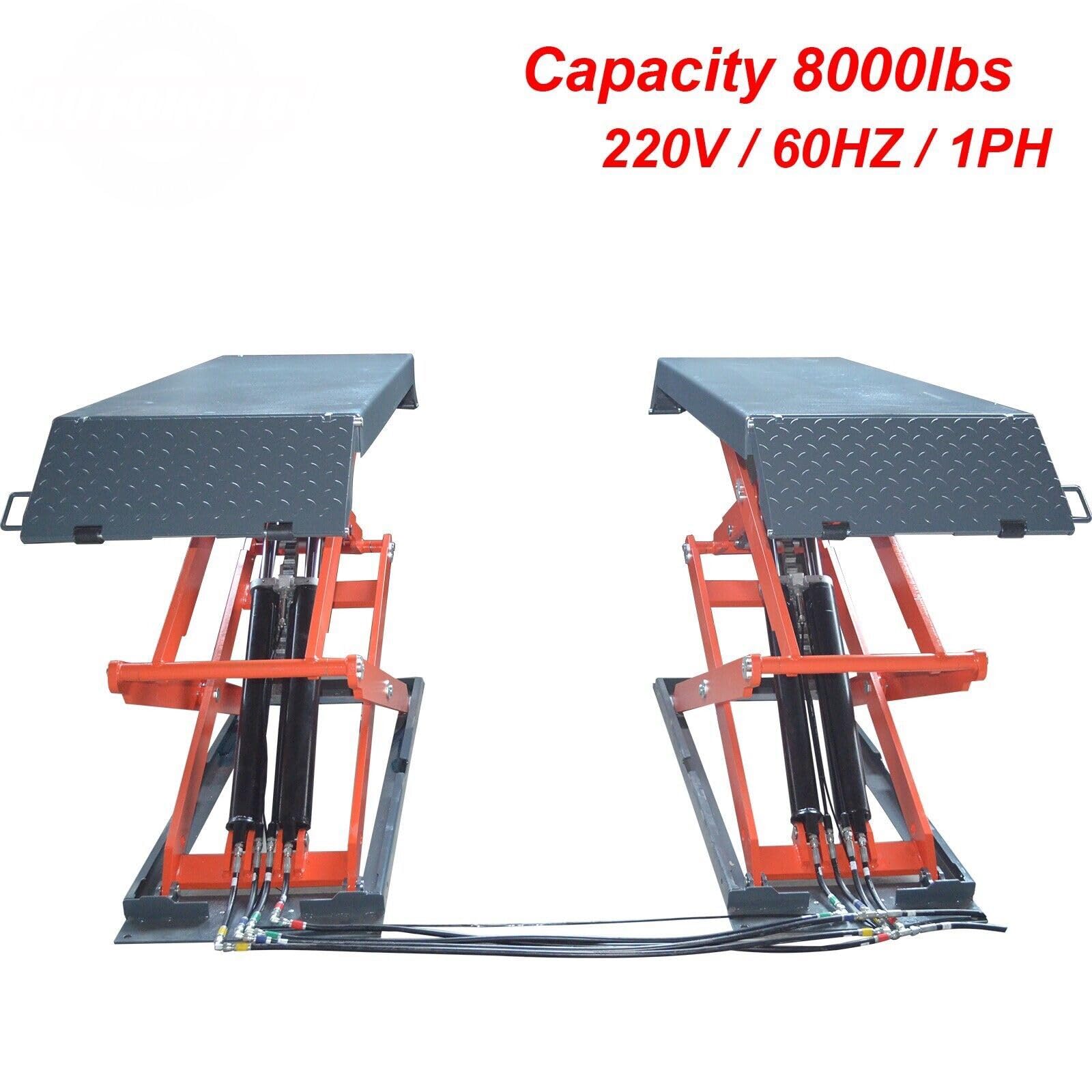

Capacity: 8,000 lbs
Voltage: 220V / 60Hz / 1PH

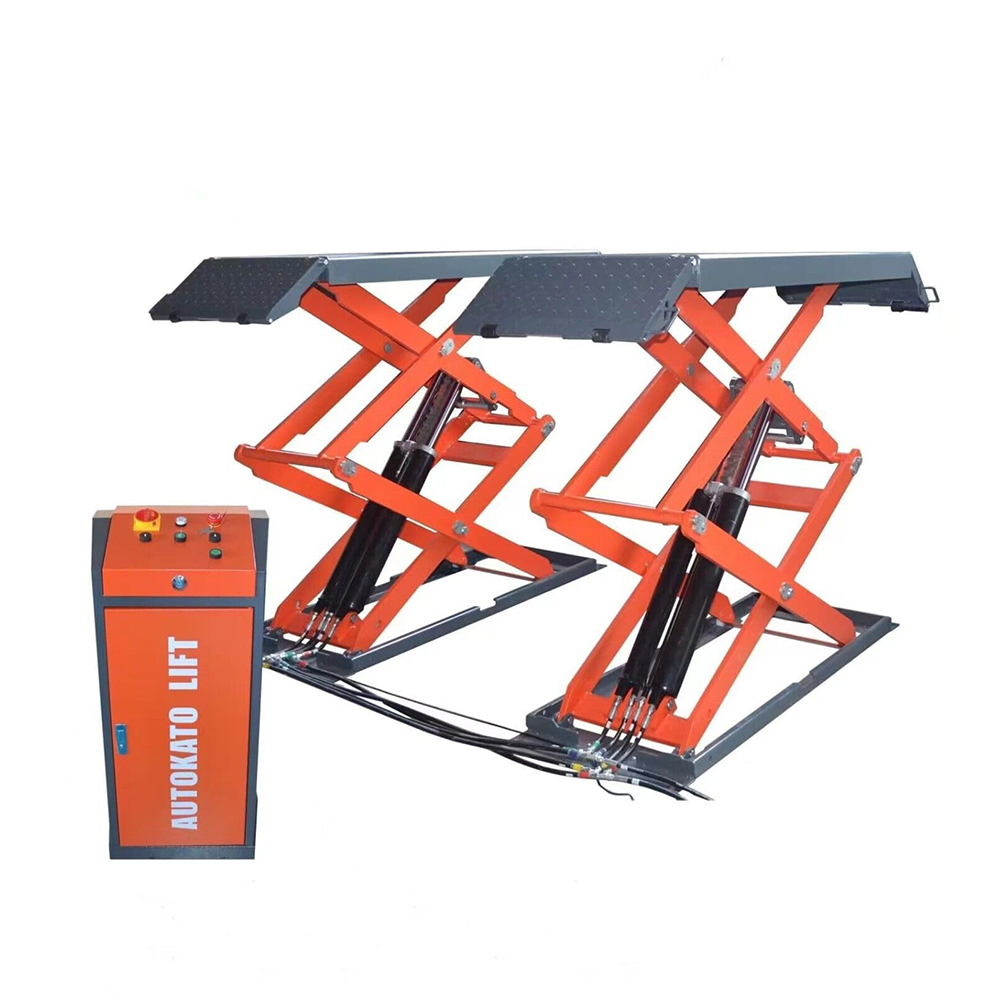

Type: Full-rise scissor lift
Motor Power: 2.2 kW
Operation: Pneumatic safety release
Control: 24V safe system

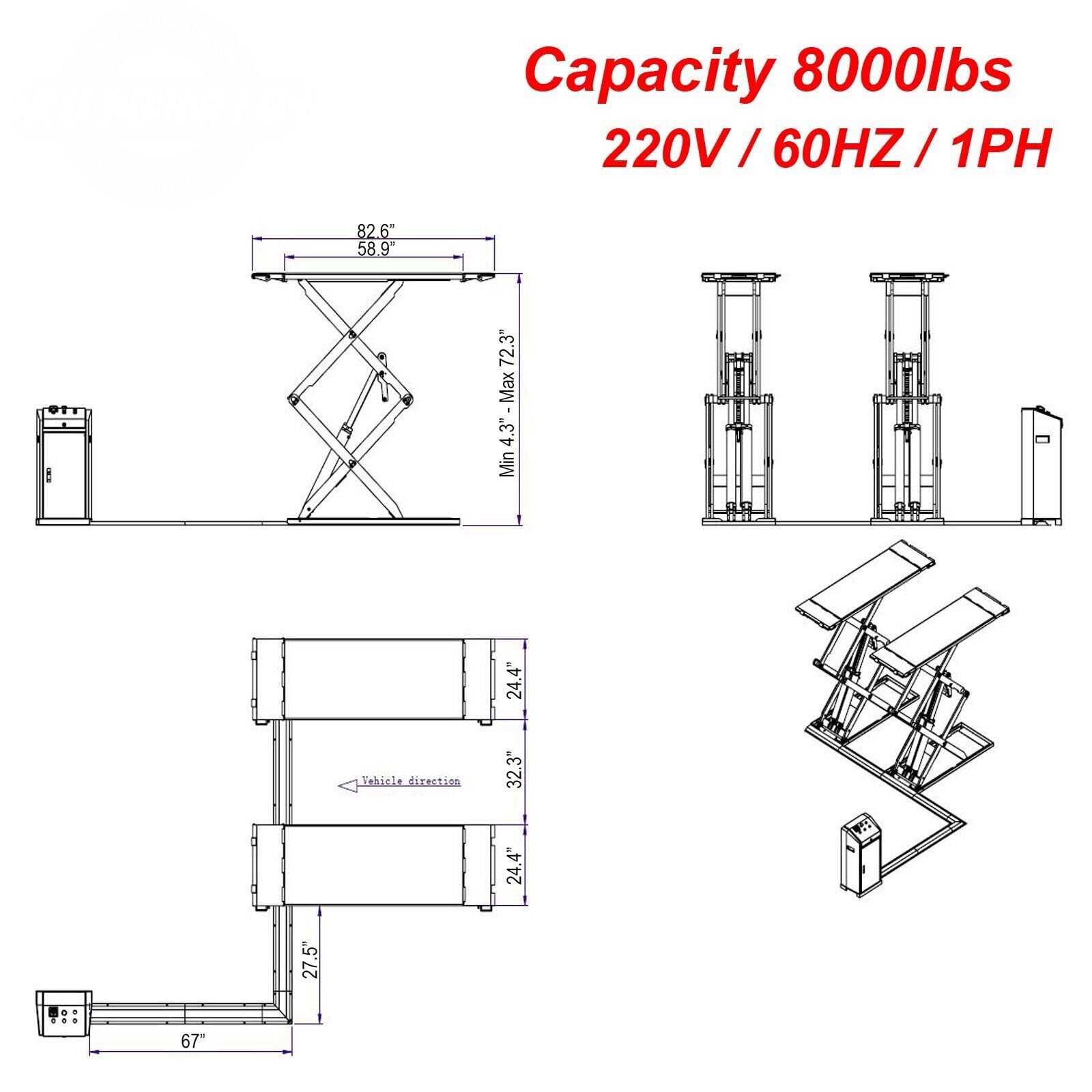

📐 Dimensions & Specs
Max Lift Height: 72.3″
Platform Length: 58.9″
Platform Width: 24.4″
Lift Time: ≤ 50 sec
Rated Oil Pressure: 20 MPa
Air Pressure: 6–8 kgf/cm²

✅ Key Features
CE certified for safety
115% dynamic load tested
150% static load tested
Flush-mount design
Height limit switch included
Composite rubber lift blocks
Self-lubricated bushings & bearings
Drive-up ramps with lock design
Aluminum motor with cooling fan

⚠️ Notes
Requires compressed air connection
12-month parts warranty included
36-month structural warranty
Extended 2-year warranty available
